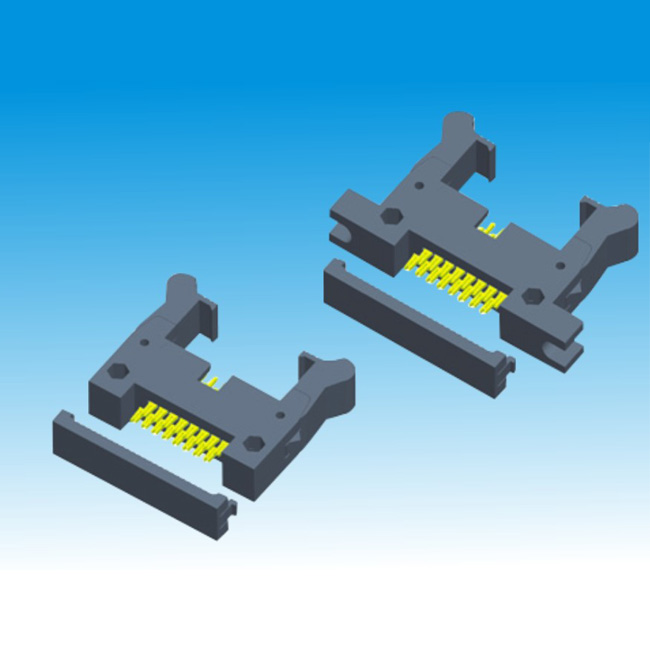

2.00mm Pitch Ejector Header IDC Type Connector With mounting ear Gold flash Tray packing

Product description:

Specifications:

Contact Material	Phosphor Brass
Insulator Material	PA6T/PA9T
Contact Plating	Au or Sn over 50U"NI
Withstanding Voltage	500V
Current Rating	1.5A
Insulation Resistance	1000MΩ Min
Package :	Tray packing
soldering type	Staight
Operation Temperature:	-40 ℃ to +105 ℃

3921XXXXWXXA01.pdf

Description

An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, by passing the need to strip the conductors of insulation before connecting.

When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.

Normally wire-to-board connectors like IDC socket was assembly flat cable and matched with box header or EJector header
