    DIP Machine Pin Headers , Round Male 2mm Header Connector ISO Certification

    Ask Lasest Price
    Brand Name : JILN
    Model Number : 3612
    Certification : UL ROHS
    Price : 0.01usd/pcs
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000000pcs per day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    DIP Machine Pin Headers , Round Male 2mm Header Connector ISO Certification

    2.0mm Pin Header Round Pin Male Type Machine Pin PCB Connectors



    SPECIFICATIONS:

    MATERIAL
    UL No#
    E362810
    Contact Material
    Brass
    Insulator Material
    PPS polyester (UL94V-0)
    Contact plating
    Gold plating
    Current Rating
    3A
    Contact Resistance
    20MΩ
    Packing :
    PE Bag packing

    Description


    Machined pin connector offer a variety of options to accommodate everything from space-saving,fine-pitch requirements , more robust applications in which products are subjected to harsh environments including significant shock and vibration. By mating different combinations of headers and sockets, a wide range of board-to-board spacing can be achieved.


    Machined pin are the most powerful connector products of all connector product types, widely used in elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry, power systems, communication networks, financial manufacturing etc.

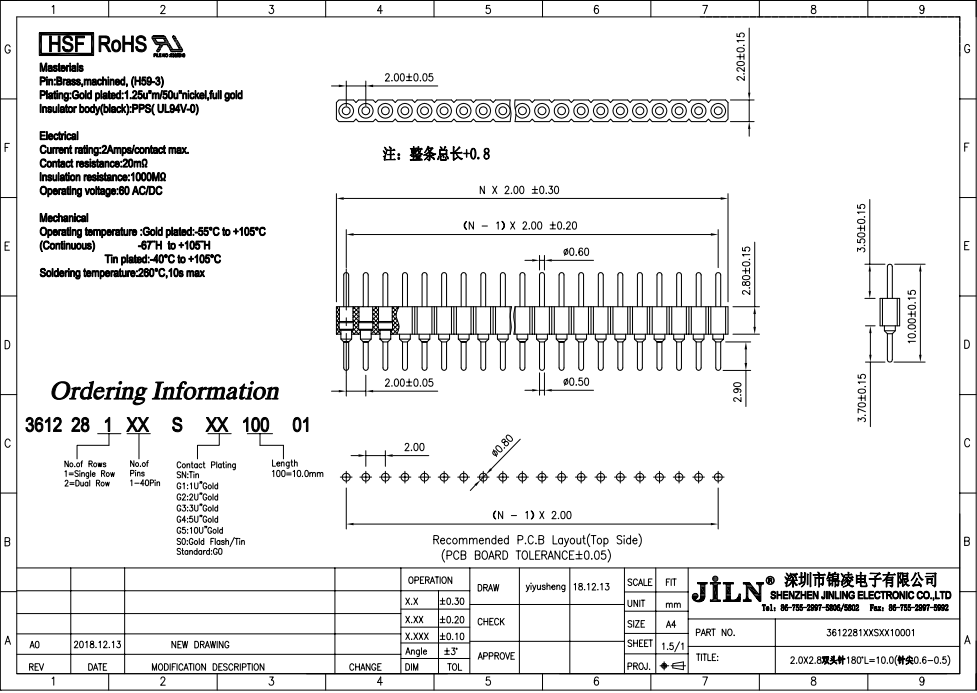

    Engineering drawing:


    Straight Type(Single row)


    Straight Type(Dual row)



    FAQ


    Q: What is the MOQ?
    A: Our MOQ is: 1000 PCS(1 PCS for sample).

    Q: How about samples? is it free ?

    A: 20 Piece free sample is available, If you would like to pay the freight fees.

    Q: What is your price term & payment terms?

    A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

    Q: What about your leading&delivery time?

    A: Leading time according to your quantity, and usually delivery time is 5~7 working days. If you are very urgent, we can negotiate.

    Q: Do you have UL certificate? and others?

    A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.

    Q: Why choose our company?
    A: Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.

    Our MOQ is: 100 PCS(1 PCS for sample).
    Good quality, competitive price with best service.
    Available for ODM/OEM order.


    Company information

    Shenzhen Jinling Electronics Co.,Ltd


    Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.


    To provide high quality and best performance-to-price ratio products from customers,we have realized integrated production from the plastic and hardware terminals,design and development of mold,precision plastic ejection molding and high speed precision hardware punching,and automatic assembly of the products,to implementation of one-stop production and service.

    Certifications

    0.8mm Board To Board Connector Female Header SMT Type LCP Material


    JILN Quality Control

    Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification. The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements

    Our services


    1. Specialized in pcb connectors over 15 years.
    2. Over 10 years experienced Engineer support OEM&ODM order.

    3. All molding stampling,tooling and electroplating processes completed in-house,

    4. Fast delivery services help customer satifisfaction rate reach 99%.
    5. Cooperation with FCI,Phoniex,Samsung,SIEMENS,PHILPS,OMRON over 5 years.
    6. Prompt delivery(3-5 work days),small MOQ(100pcs) .
