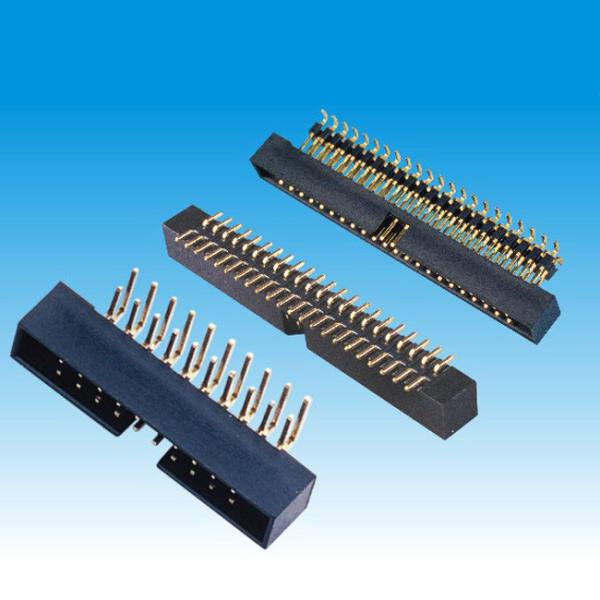

2.00mm H5.65 Box Header Right Angle SMT Connector PCBA Application Factory Manufacture

SPECIFICATION:

1.Rated Current: 1.5AMP

2.Contact Resistance: 20mΩ Max

3.Withstand Voltage: 500V AC/DC

4.Insulation Resistance: 1000mΩ Min

5.Operation Tempature: -40℃-+105℃

Box header is usually composed of a square plastic socket and a number of neatly arranged square pins.Commonly used peripheral sizes are 1.27 pitch, 2.0 pitch, and 2.54 pitch. According to the difference in pitch, the diameter of the square pin header used is also changed accordingly. The contact surface between the bottom and the PCB board can be designed as SMT patch (as shown) or DIP 180 degrees.

Advantages:

1. All kinds of products passed RoHS,SGS,100% tested before delivery

2. Factory passed ISO9001:2008 and ISO14001:2004

3. Available for OEM/ODM order

4.Some plastic passed UL cerficated

5.Well-equipped testing facilities and strong technical force

6.Prompt delivery and competitive price and quality

7.Widely used in most of home appliances, computer, PCB, LCD and TV

8.Over ten years manufacture exprience

Certifications:

FAQ:

Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
