MX3.0 Wafer Connector Wire To Board Single Row DIP Type Tin Plated LCP Black Tube packing

Here are the particular differences and similarities:
Wafer connectors are polarized which means you can not plug the mating connector in the wrong way.
The male connector is attached to your PCB board, while the female is attached to a wire cable.
The female connector is crimped on, so no soldering is required (soldering is optional though).

Wafer connectors are very similar to headers. The big difference is these connectors are more suitable as actual connectors as opposed to a place to attach some wires.

SPECIFICATIONS:

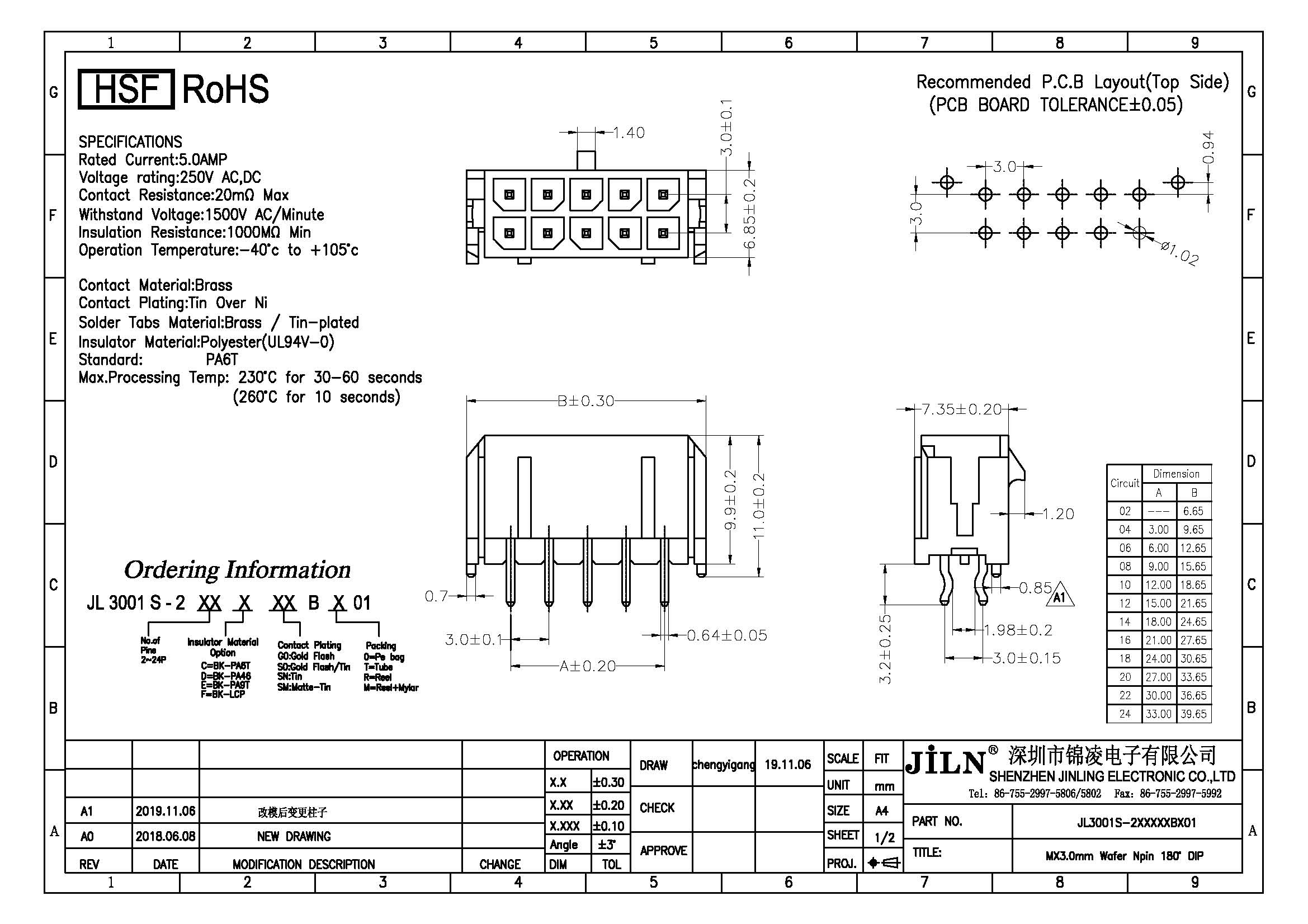

Engineering drawing:(Support Download)

JL3001R-1XXXXXBX01.pdf Single row Right Angle

JL3001S-2XXXXXBX01.pdf Dual row DIP
